Notified by email when this product becomes available

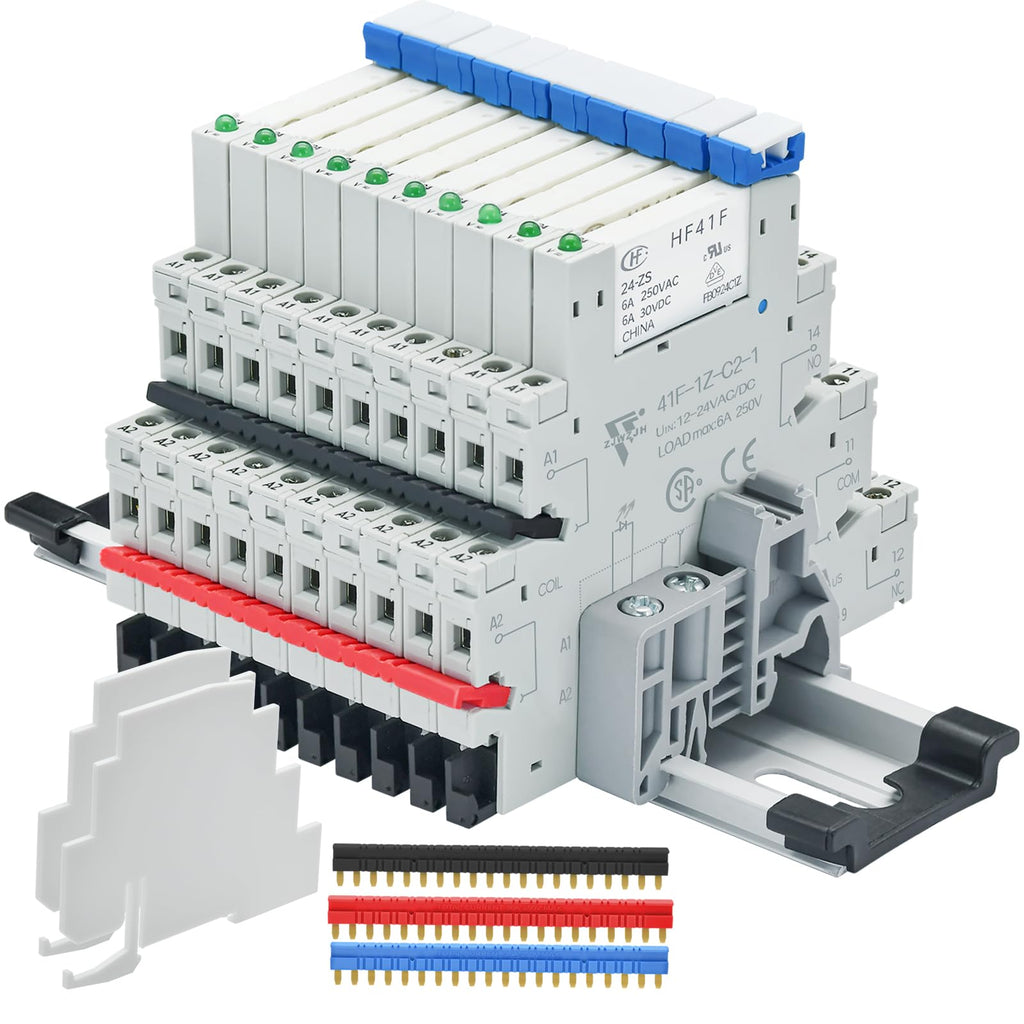

Package include : 10 x Power Relay ,10 Socket Base Relay Features 1.Slim size: width 5mm(0.2'') 2.Switching capacity: 6A 3.High breakdown voltage 4kV(between coil and contacts) 4.Surge voltage up to 6kV (between coil and contacts) 5.Meeting VDE0700/0631 reinforce insulation 6.High sensitive: Approx.170mW 7.Sockets available 8.Environmental friendly product (RoHS compliant) 9.Outline Dimensions: (28.0x5.0x1 5.0)mmRelay Contact Data 1.Contact arrangement: 1H,1Z 2.Contact resistance: 100mQ(1A 6VDC) 3.Contact material: AgSnO2, AgNi 4.Contact rating (Res.load): 6A 250VAC/30VDC 5.Max. switching voltage: 400VAC/125VDC 6.Max. switching current: 6A 7.Max. switching power: 1 500VA/180W 8.Mechanical endurance: 1x 10? 9.Electrical endurance: H:6x 10 (AgNi, 6A 250VAC/30VDC85C,1s9s )Z:3x10*(NO, AgNi, 6A 250VAC/30VDCElectrical endurance85C,1s9s )1x10*(NO, AgNi, 6A 250VAC/30VDC .85C,1s9s ) Relay Characteristics1. Insulation resistance: 1000M 2( at 500VDC) 2. Dielectric Between coil & contacts: 4000VAC 1Min Strength Between open contacts: 1000VAC 1 Min 3. Operate time(at nomi.volt.): =8ms max. 4. Release time(at nomi.volt.): =4ms max. 5. Shock Functional: 49m/s2 Resistance Destructive: 980m/s? 6. Vibration resistance: 10~ 55Hz 1mm 7. Humidity: 5%~85%RH 8. Ambient temperature: -40C~+85C 9. Termination: PCB 10. Unit Weight: Approx. 5g 11. Construction: Plastic sealed, Flux proofed
