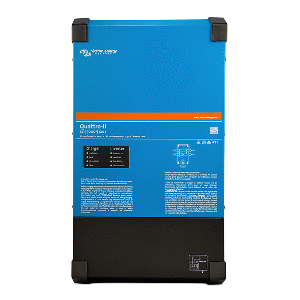

QuattroII 12/3000 12050/50 2X 120VSimilar to the MultiPlusII 2x120V, the QuattroII 2x120V is a combined inverter and charger specifically designed for standard North American 50A 120/240VAC splitphase applications. Additionally, it can accept two AC inputs and automatically connect to the active source.120/240V Input and Output, or 120V Input and Output (Always 120V Output When in Inverter Mode)The two AC inputs can be supplied from a splitphase 120/240V source or a singlephase 120V source. When one of the AC sources is available, the Quattro will feed through the AC to its output. The output will therefore mirror the AC input.The inverter/charger connects to the neutral and the preferred input line (L1). The power needed to charge the batteries will therefore be drawn from L1.The Quattro switches to inverter operation when no AC source is available. The inverter output is 120V singlephase. In invert mode, the Quattro connects both output lines (L1 and L2) together to provide 120VAC to loads on either line.Any 240V loads will therefore be supplied only when the Quattro is supplied by a splitphase AC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.PowerControl and PowerAssist Boosting the Capacity of the Grid or a GeneratorA maximum grid or generator current can be set. The Quattro will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is often required only for a limited period, the Quattro will compensate for insufficient generator, shore, or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery (available on L1 input only).Two AC Inputs and Two AC OutputsThe Quattro can be connected to two independent AC sources, for example,shoreside power and a generator, or two generators. The QuattroII will automatically connect to the active source.The main output has nobreak functionality. The Quattro takes over the supply to the connected 120V loads in the event of a grid failure or when shore/generator power is disconnected. The transfer time of the L1 output is less than 18 milliseconds, so computers and other electronic equipment will continue to operate without disruption. The transfer time of the L2 output is longer: approximately 40 milliseconds.The second (auxiliary) output is live only when AC is available on the input of the Quattro. Loads that should not discharge the battery can be connected to this output.Virtually Unlimited Power Thanks to Parallel and ThreePhase OperationUp to 6 Quattros can operate in parallel to achieve a higher power output. In addition to parallel connections, three units of the same model can be configured for threephase output. In multiphase setups, L2 is disabled on all units.OnSite System Configuring, Monitoring and ControlSettings can be changed in a matter of minutes with the VictronConnect app or VEConfigure software (computer or laptop and MK3USB interface are needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, and Digital Multi Control Panel.Remote Configuration and MonitoringInstall a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.Specifications:PowerControl & PowerAssist: Yes (on L1 input)Transfer Switch: 50 AMaximum AC Input Current: 50A (each leg)Inverter Specifications:DC Input Voltage Range: 9.517VOutput When in Inverter Mode: Output voltage: 120 Vac ± 2% / Frequency: 60 Hz ± 0.1% (1)Cont. Output Power at 25°C: 3000 VACont. Output Power at 25°C: 2400 WCont. Output Power at 40°C: 2200 WCont. Output Power at 65°C: 1700 WMaximum Apparent Feedin Power: 2500 VAPeak Power: 5500 WMaximum Efficiency: 93%Zero Load Power: 15WZero Load Power in AES Mode: 10WZero Load Power in Search Mode: 4WCharger Specifications:AC Input: Splitphase: 180280Vac 45 – 65Hz / Singlephase: 90140Vac 45 – 65HzCharge Voltage Absorption: 14.4VCharge Voltage Float: 13.8V
