SPECIFICATIONS
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
Brand Name: PowMr
Certification: CE
Charging Algorithm: 3 Stages
Charging Technology: MPPT
High-concerned chemical: None
Item 1: MPPT 60A Solar Charger
Item 2: 80A MPPT Solar Charger
Item 3: 100A MPPT Solar Charger Controller
Max. Solar Array Open-Circuit Voltage: 160V
Maximum Current: 60A 80A 100A
Model Number: POW 60A 80A 100A
Nominal System Voltage: 12V/24V/36V/48V
Origin: Mainland China
Dear Customer,
if you need to orderMultiple quantities，Each order you can choose 6pcs, in order it can delivery successful.
If over 6pcs, the transit may will have a delay, cause weight isover the limited.
thanks for your support, any question, feel free to contact us, thank you!
US EU Stock 60A 80A 100A Paralllel MPPT Solar Charge Controller 12V 24V 36V 48V Max PV 160Vdc Fit LifePo4 Batteria for Home RV
Product Features
Integrated Charging Presets
Integrated charging modes include adaptive charging logic, suitable for most battery types such as flooded lead-acid batteries, gel-sealed lead-acid batteries, and lithium batteries. Specific charging parameters for each battery type can be found in Section 3.5
Versatile Application
Compatible with 12V/24V/36V/48V system voltages.

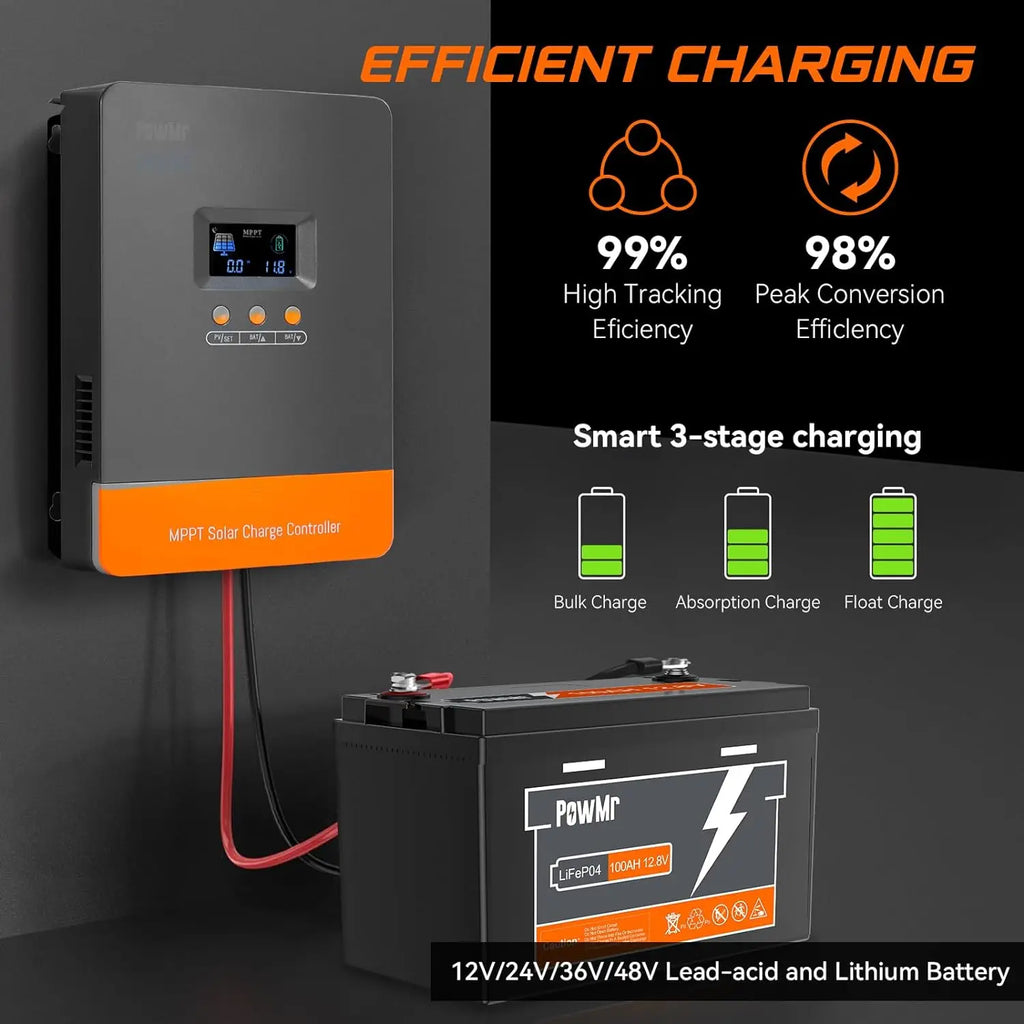

Multi-Stage Charging Algorithm
The multi-stage charging algorithm is designed to optimize each charging cycle. After the batteries are fully charged, it maintains battery capacity by applying preset charging parameters in specific charging stages.
Supports Up to 12 Units in Parallel
The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage. For detailed parallel operation guidelines, refer to Section 7.
Adaptive Boost Charging
During the initial charging phase, adaptive boost charging monitors battery response and automatically determines the duration of the boost stage for each independent charging cycle, ensuring that the battery is fully charged at any discharge level or capacity while avoiding overcharging during the boost charging stage (extends battery life).
External Temperature Probe Configuration
Enhance precision in battery temperature monitoring by configuring an external temperature probe. This ensures accurate temperature compensation for optimal system performance.
Lithium Battery Activation
Compatible with lithium batteries. When the battery type parameter is set to lithium batteries, the charging cycle will be adjusted to accommodate the needs of lithium battery charging. Additionally, when connected lithium batteries are in a protected state, the controller will activate the lithium batteries with the energy from the solar panels, with current not exceeding the lithium battery
protection voltage and current range.
Models | 60A | 80A | 100A |
Solar Input Specification | |||
Max. Solar Array Open-Circuit Voltage | 160Vdc | ||
Maximum Input Power: For 12V System For 24V System For 36V System For 48V System | 720W 20-80Vdc; 1440W 37-105Vdc; 2100W 50-160Vdc; 2800W 72-160Vdc. | 960W 1920W 2880W 3840W | 1200W 2400W 3600W 4800W |
Charge Mode | |||
Charging Technology | MPPT | ||
Charging Algorithm | 3 Stages | ||
Nominal System Voltage | 12V/24V/36V/48V | ||
Battery Voltage Range | 9~60V | 9~60V | |
Rated Charging Current | 60A | 80A | 100A |
Conversion Efficiency | ≤98% | ||
MPPT Efficiency | >99% | ||
Self-Consumption | 0.7W-1.2W | 44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V | |
Environment Specification | |||
Operating Temperature Range | -35℃~+45℃ | ||
Humidity Range | ≤95%，Non-condensing | ||
Altitude | <3000m | ||
Protection Level | IP32 | ||
Parallel Function | Up to 12 Units in Parallel | ||
