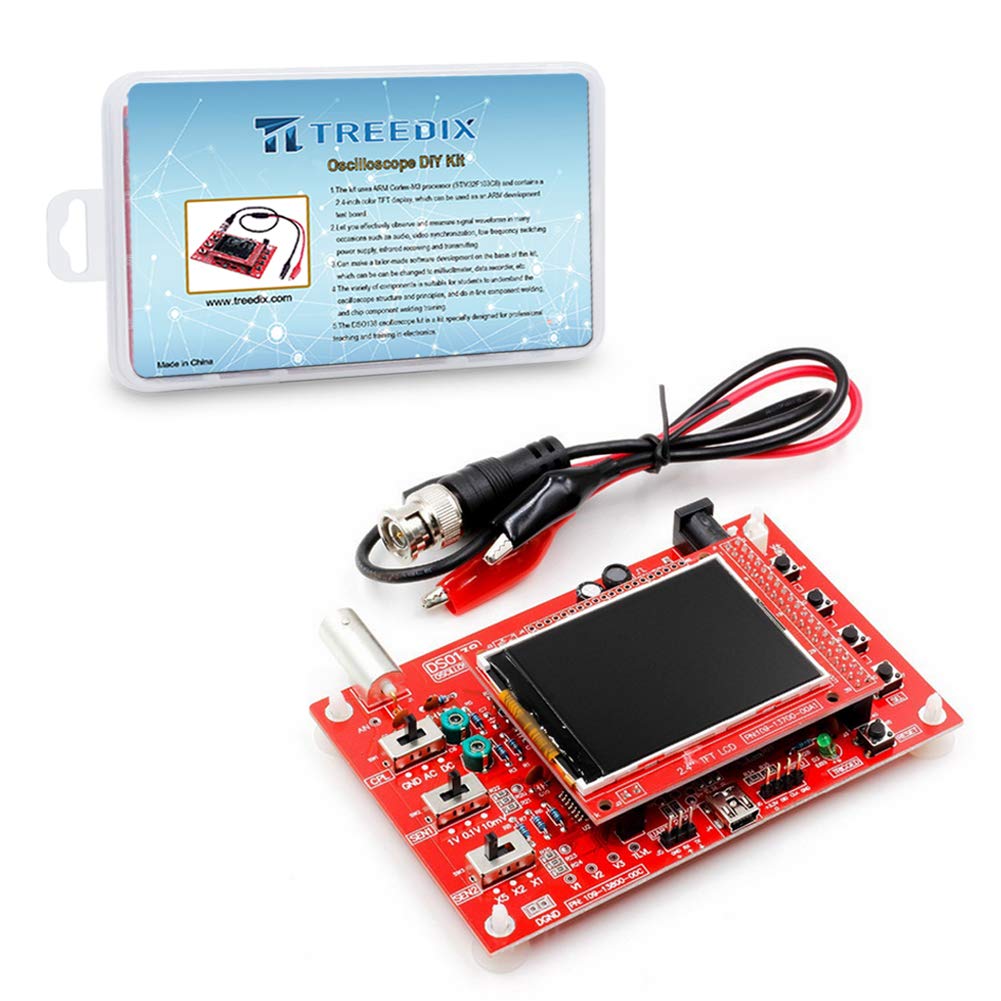

Specification: Maximum realtime sampling rate: 1Msps Accuracy: 12 Bit Sampling buffer depth: 1024 bytes Analog band width: 0200KHz Vertical sensitivity: 10mV / Div 5V / Div (Progress according to 125) Input impedance: 1MO Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) Horizontal time base range: 10s / Div 50s / Div (Progress according to 125) Features: 1. Coupling methods include DC / AC / GND 2. The vertical displacement can be adjusted with instructions 3. With automatic, conventional and single trigger mode, it is convenient to capture instant waveform 4. Trigger on rising or falling edges 5. Trigger level position can be adjusted with indication 6. Observable waveform before trigger (negative delay) 7. Waveform display can be frozen at any time (HOLD function) 8. Comes with 1KHz /3.3V square wave test signal source Package included: 1 x Oscilloscope DIY Kit1 x Instruction Note: This oscilloscope DIY Kit need to be assembled and soldered by yourself.
