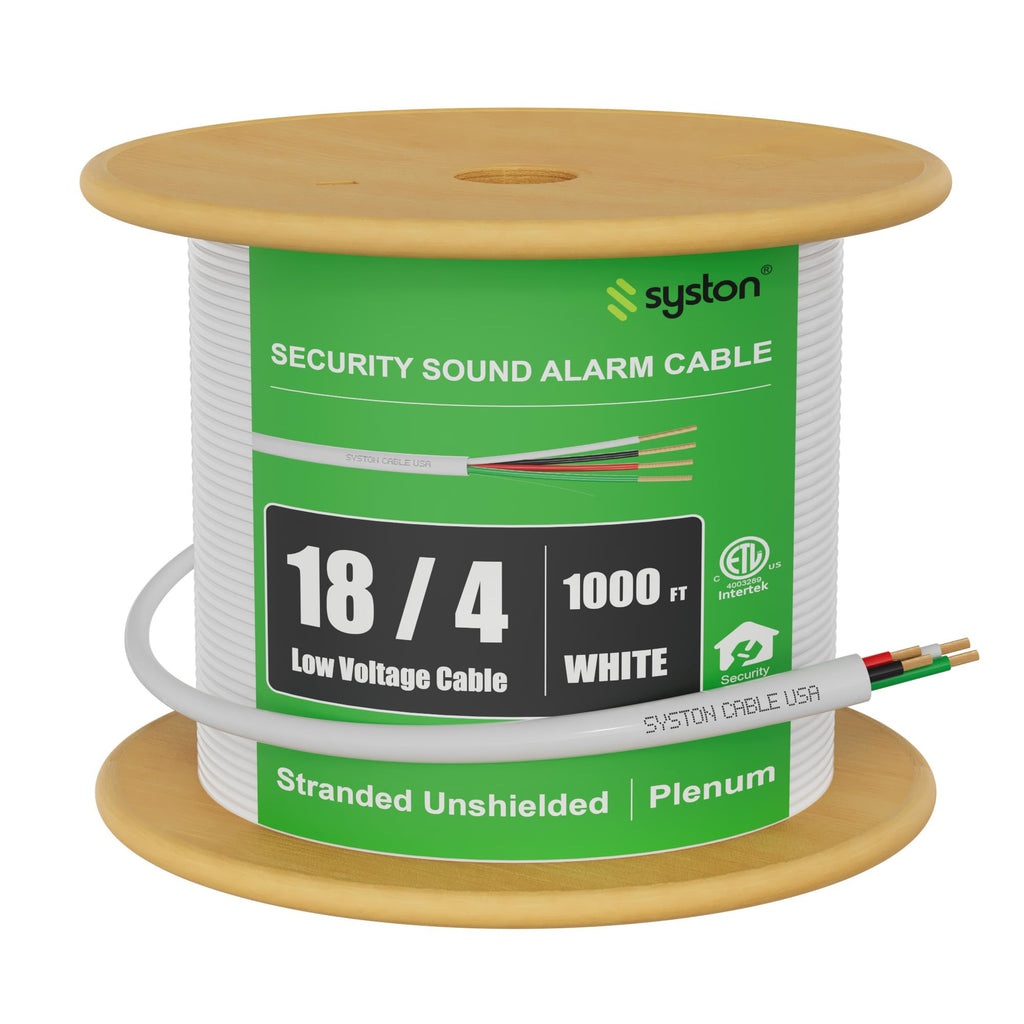

Physical Characteristics Conductor: Stranded Bare Copper Number of Conductors: 4 Size: 18 AWG Stand Count: 19/30 AWG Stranded Insulation: Plenum Polyolefin (Low Smoke, Flame-Retardant & RoHS Compliant) Conductor Color Code: 1. Black 2. Red 3. White 4. Green Rip Cord: Applied longitudinally under jacket Jacket: Plenum PVC (Low-Smoke, Flame-Retardant & RoHS Compliant) Nominal Cable Diameter (in): 0.208 Nominal Cable Net Weight (lbs/1000 ft): 27.78 Minimum Bend Radius (in): 3.0 Maximum Pulling Force (lbs): 35 Temperature Rating (F): Installation: +32 to +140 Storage & Operation: -4 to +167 Certificate for Management System ISO9001: 2008, ISO14001: 2004, OHSAS 18001 Standard Compliances NEC: 725 & 800 UL Standard: UL 13 & UL 444 Flame Rating: UL 910 Plenum, c(UL) FT6 RoHS: Compliant Directive 2011/65/EU Electrical Characteristics Operating Voltage: 300 Volts Max Capacitance: 24 pF/ft Nom Impedance: 70 Ohms Nom DC Resistance: 6.7 Ohms/M @ +68 F Certifications
