Frequently Asked Questions

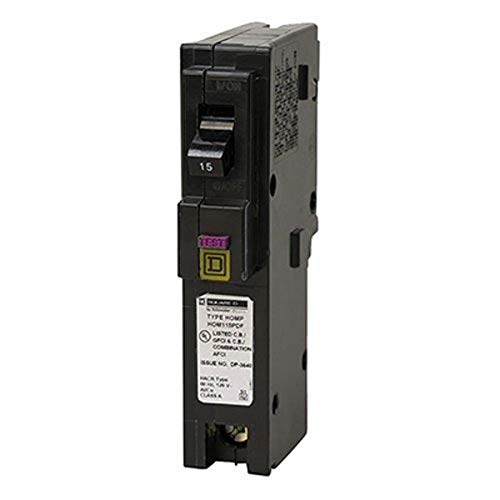

The Square D HOM115PDFC is a 15 Amp single-pole dual function circuit breaker designed for use in Homeline load centers. It features both Combination Arc Fault Circuit Interrupter (CAFCI) and Ground Fault Circuit Interrupter (GFCI) protection.
The dual function feature combines CAFCI and GFCI technology to protect against both arc faults and ground faults, enhancing safety by preventing electrical fires and electrical shock.
No, the Square D HOM115PDFC circuit breaker is only compatible with Homeline series load centers that are model 4 or newer.
The Square D HOM115PDFC circuit breaker is rated for 120 volts (VAC).
The installation process is designed to be quick and easy, thanks to an innovative neutral connection that eliminates pigtails, providing faster installation and freeing up gutter space.
The Square D HOM115PDFC has an interrupting rating of 10,000 amperes (AIR), which indicates its capacity to safely interrupt fault currents.
The Square D HOM115PDFC circuit breaker is constructed using high-quality plastic, ensuring durability and reliability.
This circuit breaker occupies one space per pole in the load center.
Yes, the Square D HOM115PDFC circuit breaker is ANSI certified and UL listed, meeting safety standards for electrical devices.
The Square D HOM115PDFC circuit breaker is intended for indoor use within a load center and should not be used for outdoor applications without appropriate protection.
