Notified by email when this product becomes available

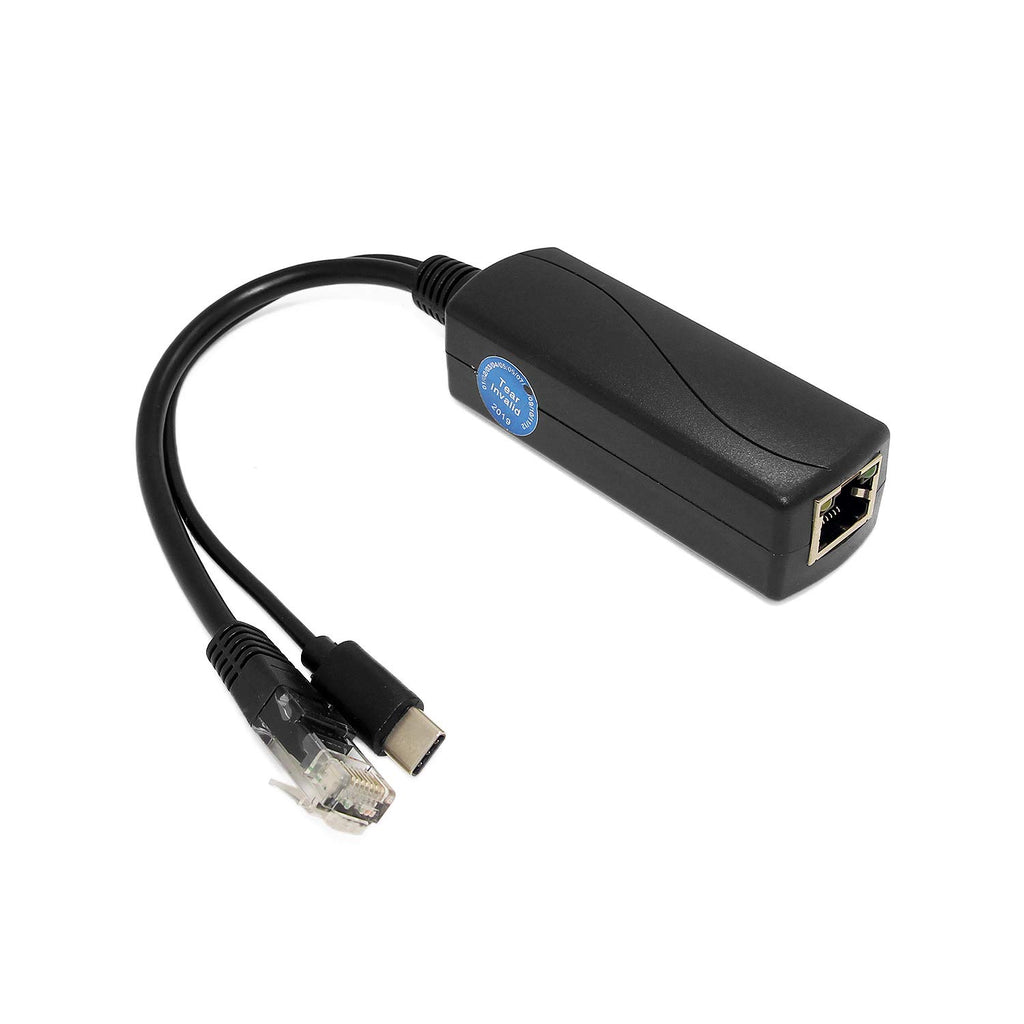

Overview:TYPEC0503 PoE splitter,a new model: With RJ45 port and TYPEC port.it is an economical and practical PoE remote power equipment base on IEEE802.3af standard. It can separate the power and data via cable transmission. Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE. PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.Specifications: Support international standard IEEE802.3 af; POE port Support 10/100Mdata transmission PD support 44V-57V voltage transmission, Automatically detects power supply from PSE power supply module 5V/3A power output using Type-C, the Type-C port only for power-charging. Support the isolation circuit protection, can effectively protect electrical equipment. Support the short circuit, overvoltage protection 1500V high voltage isolation Model: TYPEC0503Transfer Rate: 10/100MbpsPower: Input 48V DC /0.6A, Output 5V/3AStandard: IEEE802.3 afTRNF: 1/2(+),3/6(-);4/5(+),7/8(-)Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC output(Type-C)Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 afLED: Yellow PoE lampTemperature: Work within -20~50,Storage within -30~60Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)Dimension: 27.5 x 2.8 x 2.3cmWeight: 0.05kgPackage Content:1 x POE Splitter (TYPEC0503)
