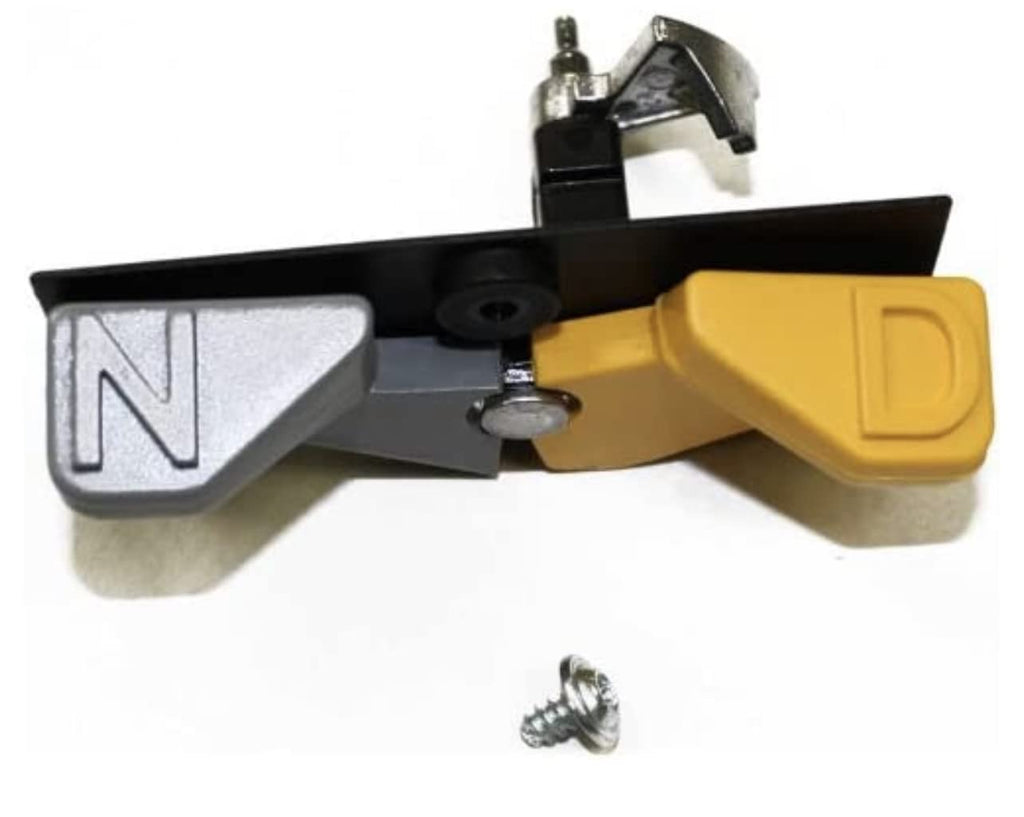

Kirby Vacuum Neutral / Drive Pedal. To Remove Cover Assembly and Transmission:A. Remove the handle, floor nozzle and emtor from power unit.B. Remove scuff plate by: 1. Remove the screw at the top of the scuff plate for the cord clip. 2. Insert a flat screwdriver into the slot above the switch pedal and lift. 3. While applying downward pressure to the top of the scuff plate carefully slide it to the rear of the power unit. Once the clips at top of scuff plate are free you can lift it off.C. Remove cover casting by: 1. Raise the headlight cap and remove the two flat screws at the front of the cover casting. 2. Remove two screws at the rear of the cover. (These were under the scuff plate) 3. Lift the cover casting off.D. Remove the on/off foot pedal by: 1 Inserting a thin flat bladed screwdriver under the pivot points of the on/off pedal and pry them off the pivot pins. 2. Carefully lift the on/off foot pedal up and out of the power unit until sufficient clearance is available to slide the power switch actuating rod out of foot pedal. Leave the rod connected to the power switch.E: Removing the Transmission: 1 Turn the power unit over, and remove the three screws holding the transmission in. two of the screws are near the back wheels, and the third screw is centered, but is three inches from the back of the power unit. DO NOT remove the center screw that is at the back of the power unit. 2. While supporting the transmission turn the power unit over. 3. Set the N/D pedal in drive. 4. Lower the transmission a little to get some slack in the drive belt, then remove the drive belt. 5. Make sure the power switch actuating rod is pointing upward, then remove the transmission from the power unit.F Removing the Neutral Drive Pedal. 1 Observe how the N/D pedal fits into the bracket cam assembly frame in front of it. 2. Remove the remaining screw in the bottom of the transmission. 3. Remove the N/D Pedal Assembly by lifting up and back. congratulations!G. Assembly is in reverse
