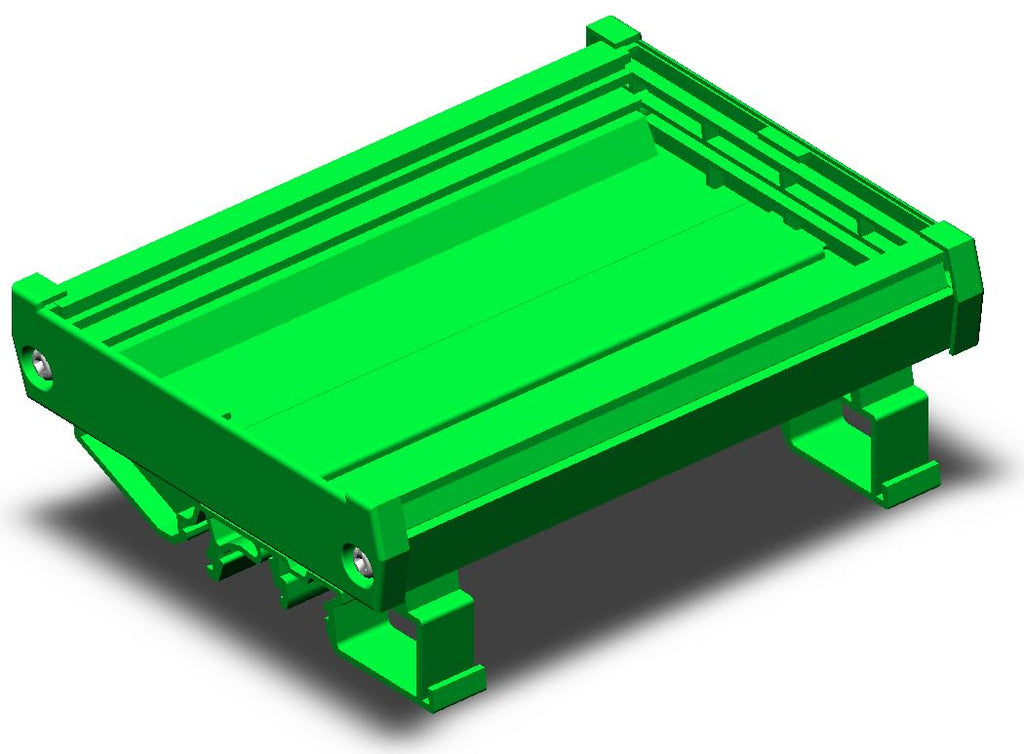

Profile PCB Holders provides quick & easy mounting of PCBs on all three rails (35, 15, G) & Wall / Panel. Profiles are available in standard 1 or 2 Meter length or it can be easily cut to required custom lengths. Profiles are also available with custom length from us with accurate cutting. Standard profile cut length is 50,100,150,200,250and 300mm. PCB Length = Profile Length + 5mm (2.5mm of PCB goes inside each End pieces) The typical applications of Profile PCB Holders include Mounting custom PCB and Standard interface modules for Din Connectors, Sub Miniature Din Connectors, Flat Cable Connectors also Modules like Relay modules, Opto - coupler modules, Switch modules, Fuse modules, Diode modules, Veristor Modules, Power supply modules, Over Voltage protection modules, Data Transmission & Receiver Modules, Analog/ Digital converter etc. Mounting of Profile PCB Holders:DIN Rail Mounting: The Profile is mounted on DIN rail with help of 2 or more Foot Piece; It slides into grooves on the extrusion. Two End Pieces are fixed with screws on extrusion to hold PCB securely in place and to keep out foreign objects. Color : Green & Black Material: Profile - Extrusion molded : PVC Self-extinguishing PVC PCB Length = Profile Length + 5mm (2.5mm of PCB goes inside each End pieces) Package Content:1 X profile - extrusion molded 2 x Foot Piece 2 x End Piece for Rail Mount 4 x Screws Selectable support PCB size in mm - Model No 73 x 55mm -- PHSCR-5073 x 105mm -- PHSCR-10073 x 155mm -- PHSCR-15073 x 205mm -- PHSCR-20073 x 255mm -- PHSCR-25073 x 305mm -- PHSCR-300
