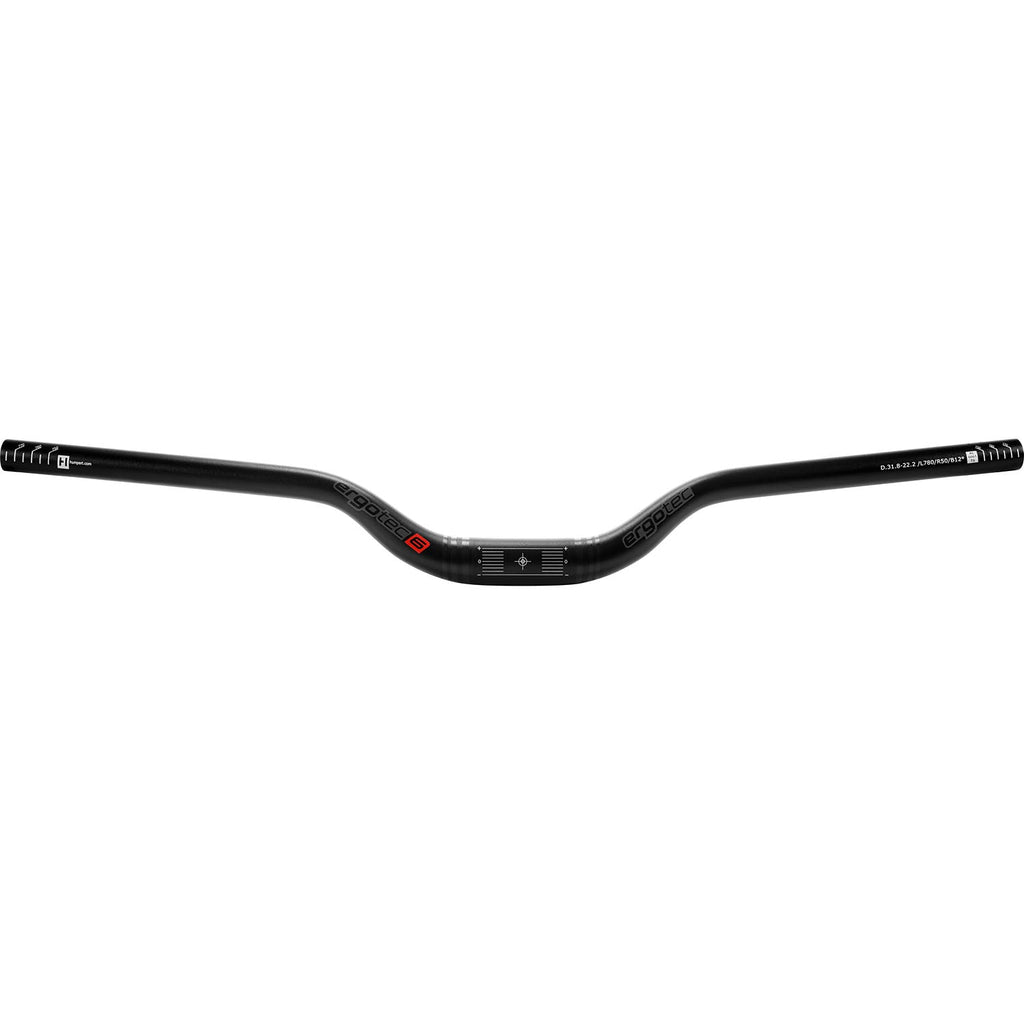

THE ERGOTEC RISER BAR 50 CERTIFIED . The high-quality Riser Bar 50 with handlebar clamp 35.0 is the ideal choice for mountain bike enthusiasts who value quality and performance. With a height gain of 50 mm, it allows for a more upright sitting position, which is an advantage on long rides. Thanks to its high strength and good flex, the Riser Bar 50 is extremely resilient and resistant. With a Safety Level 6, the Riser Bar 30 meets the high safety standards of DIN EN ISO 4210 and DIN EN 17404 and is approved for a total weight (rider, bike, luggage) of up to 140 kg.

PERFECT COMBINATION OF COMFORT AND CONTROL. The handlebar is equipped with a 12° backsweep, which leads to a more comfortable position. This allows for a more natural hand position and relieves the wrists, which is especially advantageous on longer distances and bumpy terrain.  This handlebar offers the stability, control and comfort you need to get the most out of your riding experience.

PROVEN AND TESTED WITH EUROPEAN STANDARDS. In our own ergotec Test Center all ergotec handlebars, stems and seat posts are subjected to extreme long-term tests, both individually and in combination. In addition to testing in line with European standards, ergotec also tests according to the significantly higher ergotec SAFETY LEVEL requirements.

VERSATILE UTILIZATION AND UTILITY. Handlebars with Level 5 safety can be used for Youth-bikes, Young adult (up to 100 kg), Cargo-Bike (up to 300 kg), City/Trekking Bike (up to 180 kg), Road/Gravel/Travel Bike (up to 120 kg), Mountain Bike (up to 140 kg).

OPTIMAL CONNECTION BETWEEN THE RIDER AND THE BIKE. ergotec has an extensive and well-coordinated product range for all 3 contact points in the area of handlebars/grips, saddles/seatposts and pedals. This allows the bicycle to be optimally adapted to the individual needs of the cyclist, and reduces discomfort when cycling. In addition long distances can be covered with power and safety

All steering systems and all ergotec stems are tested without exception and are then classified with a SAFETY LEVEL. All ergotec seatposts also have a SAFETY LEVEL. Irrespective of whether you ride a mountain bike, an e-bike or a touring bike – you will always get the exact component with safety certification you need.

ergotec SAFETY LEVEL is a safety classification for steering systems and seatposts on bicycles. ergotec products have a SAFETY LEVEL of 1 to 6. The higher the level, the greater the safety. Each level has their suggested bike activity, from city to cargo.

All handlebars and stems are subjected to hard long-term testing individually and in combination. The same applies for seatposts. This testing is carried out in accordance with European testing standards or even higher demands.

No other bike handlebar manufacturer in Europe has as large a testing centre as we do at ergotec. Furthermore, our products are tested frequently at recognised independent institutions.

SPECIFICATIONS

• Safey Level: 6
• Width: 780 mm
• Grip Length: 200 mm
• Thickness: 1.9-2.7-1.9
• Weight: ~400 g
• Clamp: 35.0 mm
• Material: AL6061 T6
• Rise: 50 mm
• Back and Up Sweep: 12 / 5 degrees
• Finish: Black Sandblasted
