Notified by email when this product becomes available

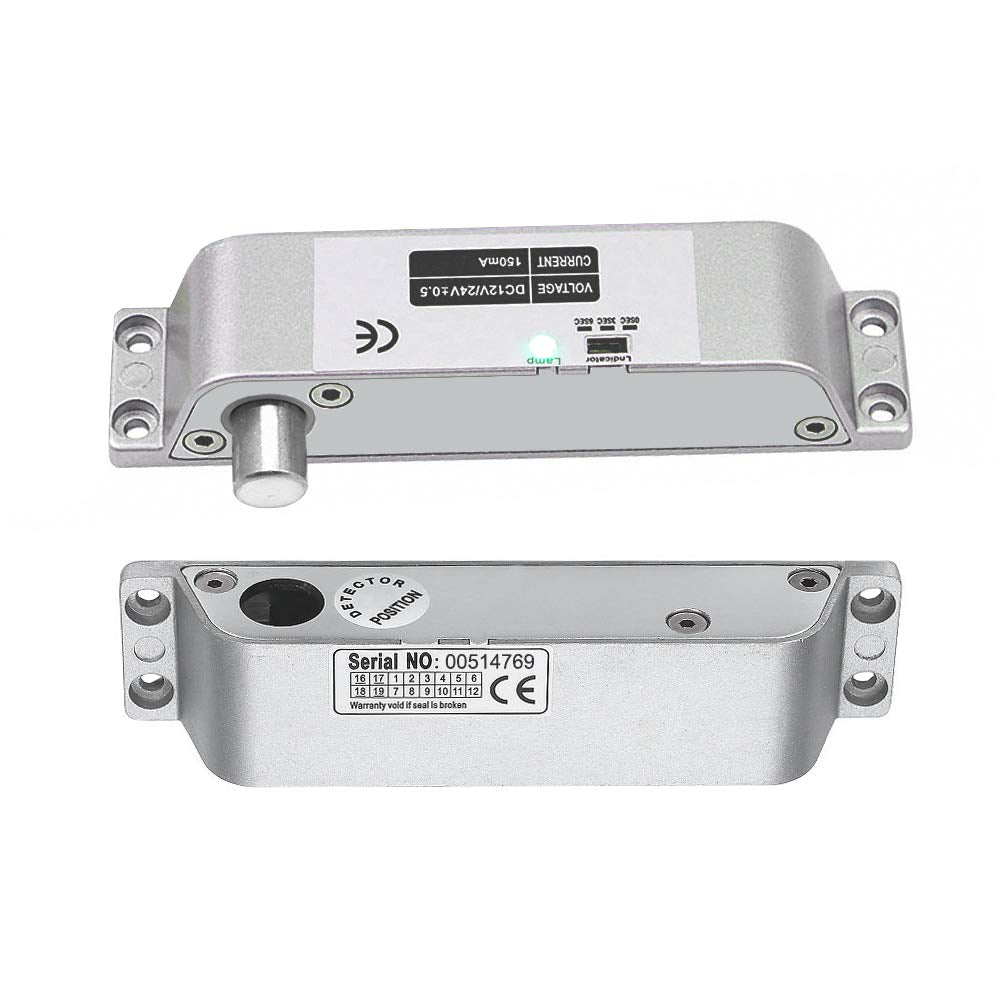

This drop bolt door lock is aluminum alloy material, durable and wear-resistant. It's especially suitable for wooden and metal doors. Protect business company shops. Features: 1. NC mode - (locked while supplied with power), fail safe mode, lock while supplied with power, and unlock without power. 2. Surface mounted installation, aluminum alloy material, lock body use hexagon screw, fixed panel, anti-theft and more security. 3. Special circuit design, with no external interference, the door will unlock until the power is cut off, with 0, 3, 6 seconds time delay adjustable. 4. Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc. Specifications: Material: Aluminium Alloy Input Voltage: DC 12V Working Current: 150mA Starting Current: 1.2A Holding Force: 1000KG Delay Function: 0s/3s/6s delay Secure Mode: NC model/ fail safe model ( Locked when power on, unlocked when power off ) Lock Cylinder Size: 12.5mm/0.5in diameter, 15mm/0.6in extension length Lock Body Size: Approx.150*34*28mm/5.9*1.3*1.1in Package Weight: Approx.515g/18.2oz Package List: 1 x Electric drop bolt lock 1 x Panel Cover 1 x Screw Bag 1 x User Manual Connection note: If you want to test the lock, please connect the red cable to +12v , and black cable to GND of the 12VDC power supply. When you install completed access control system kit set, please connect red cable to NC, black cable to COM of the power supply. Dont need to connect the yellow and white cable.
