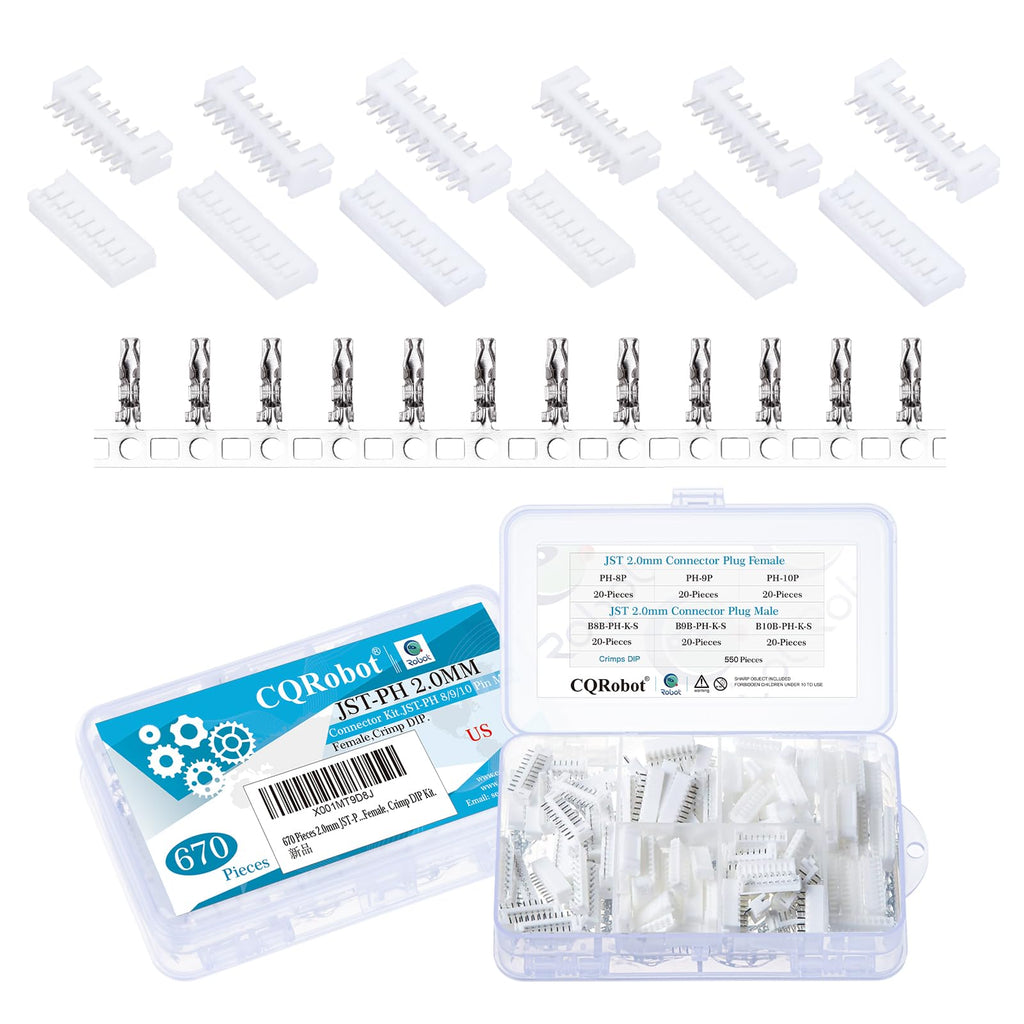

With the development of industrial electronic integrated circuits, there are various IC sockets and plug adapter connectors in electronic equipment. Currently, failures due to defective IC sockets and plug connectors account for more than 37% of all equipment failures. JST connector IC sockets and plugs play the role of conducting electricity and connecting signals in electronic equipment. IC sockets and plugs facilitate specialization, parts replacement, troubleshooting and quick assembly. Due to their stronger and more reliable characteristics, they are used in various devices. APPLICATION - Industrial Production - Electronic Integration - Computer Application - Medical Equipment SPECIFICATION - Model: JST PH 8 pin / 9 pin / 10 pin - Pitch: 2.0 mm (0.079 inch); - Current Rating: 2A AC/DC (AWG #24); - Voltage Rating: 100V AC/DC; - Temperature Range: -25 Degree Celsius to +85 Degree Celsius(including temperature rise in applying electrical current); - Contact Resistance: Initial value / 10 Milliohm max; After Environmental Testing / 20 Milliohm max; - Insulation Resistance: 1000 Megaohm above; - Withstanding Voltage: 800V AC/one minute; - Applicable Wire: AWG#32 to AWG#24 - Applicable PC Board Thickness: 0.8 mm to 1.6 mm (0.03 inch to 0.06 inch) DISTRIBUTION LIST 1 * JST PH 2.0 mm Pitch 8-Pin/9-Pin/10-Pin JST Wiring Connecting IC Male Plugs, Female Sockets Housing and T-shaped Crimp Terminal Kit. (60 sets / 670 pieces)
