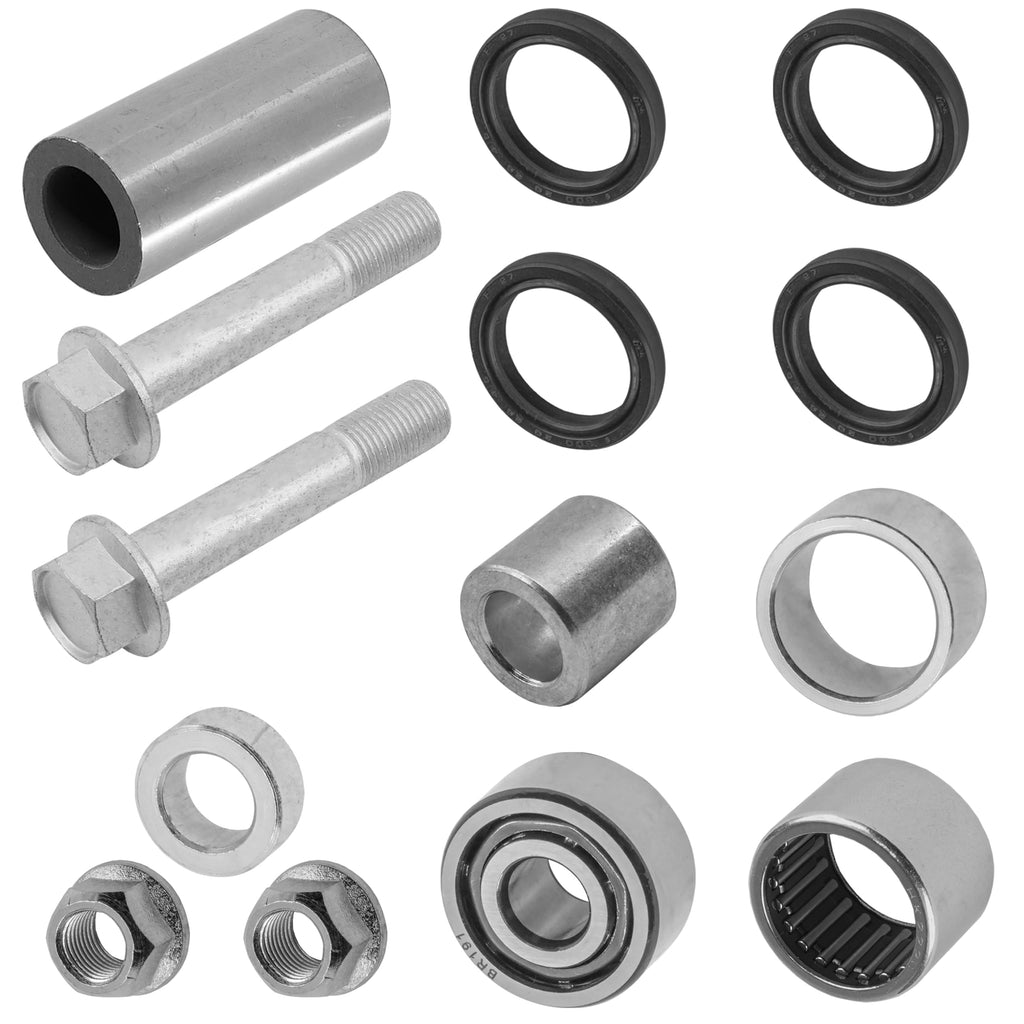

Compatible with Honda Models: Rancher 420 TRX420FE 4x4 ES 2007-2013Rancher 420 TRX420TM 2x4 2007-2013Rancher 420 TRX420FM 4x4 2007-2013Rancher 420 TRX420TE 2x4 2007-2013Rancher 420 TRX420FPM 4x4 EPS 2009-2013Rancher 420 TRX420FPE 4x4 ES EPS 2009-2013 Part number & Dimensions:Collar Right Pivot: 52142-HP5-600 Length: 42.1mm - 1.6 inner Diameter: 12.2mm - 0.48 inOuter Diameter: 20 mm - 0.78 in Pivot Left Collar C: 52145-HP5-600 Width: 17mm - 0.66 in inner Diameter: 25.8mm - 1.01 inOuter Diameter: 32mm - 1.25 in Pivot Left Collar A: 52143-HP5-600 Width : 8 mm - 0.31 in inner Diameter: 12.25mm - 0.48 inOuter Diameter: 20mm - 0.78 in Pivot Left Collar B: 52144-HP5-600 Width: 18mm - 0.71 in inner Diameter: 12.2mm - 0.48 inOuter Diameter: 19.7mm - 0.77 in Seal: 91254-KS6-003, 91254-KS6-005 Width: 4.3mm - 0.16 in Inner Diameter: 20mm - 0.78 inOuter Diameter: 26mm - 1.02 in Needle Bearing: 91070-GC4-601, 91071-430-003 Width: 19.8mm - 0.77 inInner Diameter: 22.5mm - 0.8 inOuter diameter:26 mm - 1.02 in Bearing: 91054-HP5-601 Width: 16 mm - 0.62 inInner Diameter: 11.85 mm - 0.46 inOuter Diameter: 32 mm - 1.25 in Pivot Bolt : 52101-HP5-600 Length: 76 mm - 2.99 inHead Diameter: 25 mm - 0.98 inThread Size: M12x1.25 Nut: 90305-HC4-000 Width: 12.3 mm - 0.48 inInner Diameter: 10.7 mm - 0.42 inOuter Diameter: 21.56 mm - 0.84 in Note: installs On Location (A) (B) in Second PictureSw ing Arm Part Number: 52200-HP5-600 52200HP5600
