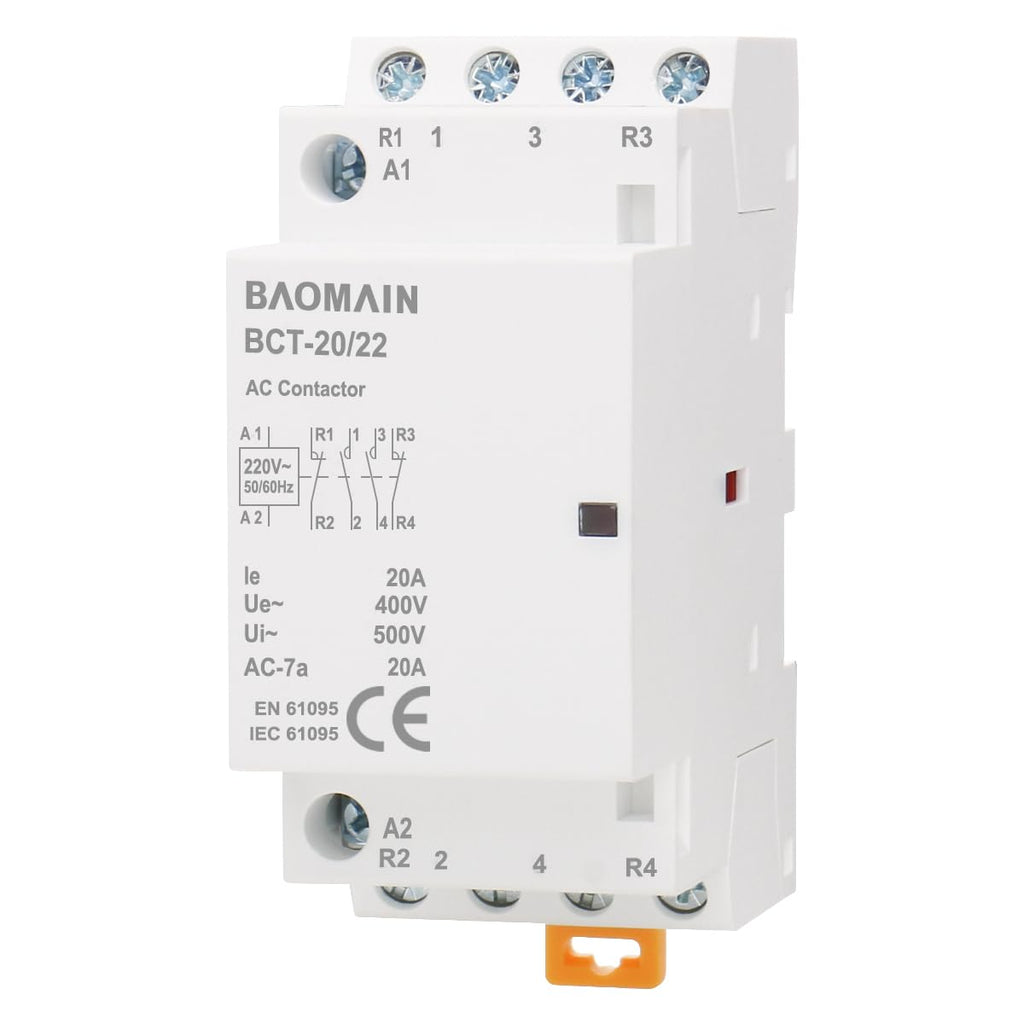

Baomain AC Contactor 4-Pole 2NO2NC AC model for household appliances, motors (HVAC/pumps), and lighting control Meets IEC61095/GB17885 and IEC60947-4-1/GB/T 14048.4 standardsFUNCTION AND APPEARANCE Compact modular design, rail-mounted for safe, standardized installation. Direct-acting inverted structure, compatible with miniature circuit breakers in control/lighting panels. Supports expandable auxiliary contacts (sold separately): 1NO+1NC(B0CM8YG59G) or 2NO (B0CM8XSMBW). Electrical Specifications Contact: 4-Pole,2 Normally Open + 2 Normally Closed (2NO2NC) Rated Coil Voltage : AC 220V; 50/60Hz; Rated Current: 20A (AC-7a), 7A (AC-7b) Max. Power Consumption: 1.6W Rated insulation voltage: 500V (Ui) Rated operational voltage: 400V (Ue) Wire Capacity Range (Flexible cord): AWG 12-10 Mechanical Specifications Size: 82 x 36 x 65mm / 3.23 x 1.42 x 2.56(L*W*T) Weight: 210g Mounting: 35mm DIN RailImportant Notes: AC Power Only: Strictly for 220V AC systems (NOT compatible with DC).AC contactors are designed for AC characteristics (e.g., electromagnetic systems). DC power may cause malfunction or audible noiseEnsure stable 220VAC input; voltage fluctuations may lead to abNormally operation.Safety ProtectionMust use with short-circuit protection (fuses/circuit breakers). Contactors cannot interrupt short-circuit currents. Heat Dissipation RequirementsFor Class 2 Contactors: Add spacing plates when installed side-by-side with other devices to ensure proper heat dissipation. Applications Smart home automation (lighting, HVAC schedules) Motor/pump control in residential systemsInstallation Requirements For qualified electricians only Verify voltage, current, and contact compatibility Install only on de-energized systems Comply with local electrical codes
