Fits:
Toyota Land Cruiser 250 / Lexus GX550 / 6th Gen 4Runner
What It Does
Fixes that sketchy, side-to-side axle swing after a lift.
Brings your track bar (panhard bar) back to a more natural, level position.
Keeps your rig tracking straight, planted, and predictable on-road and off.

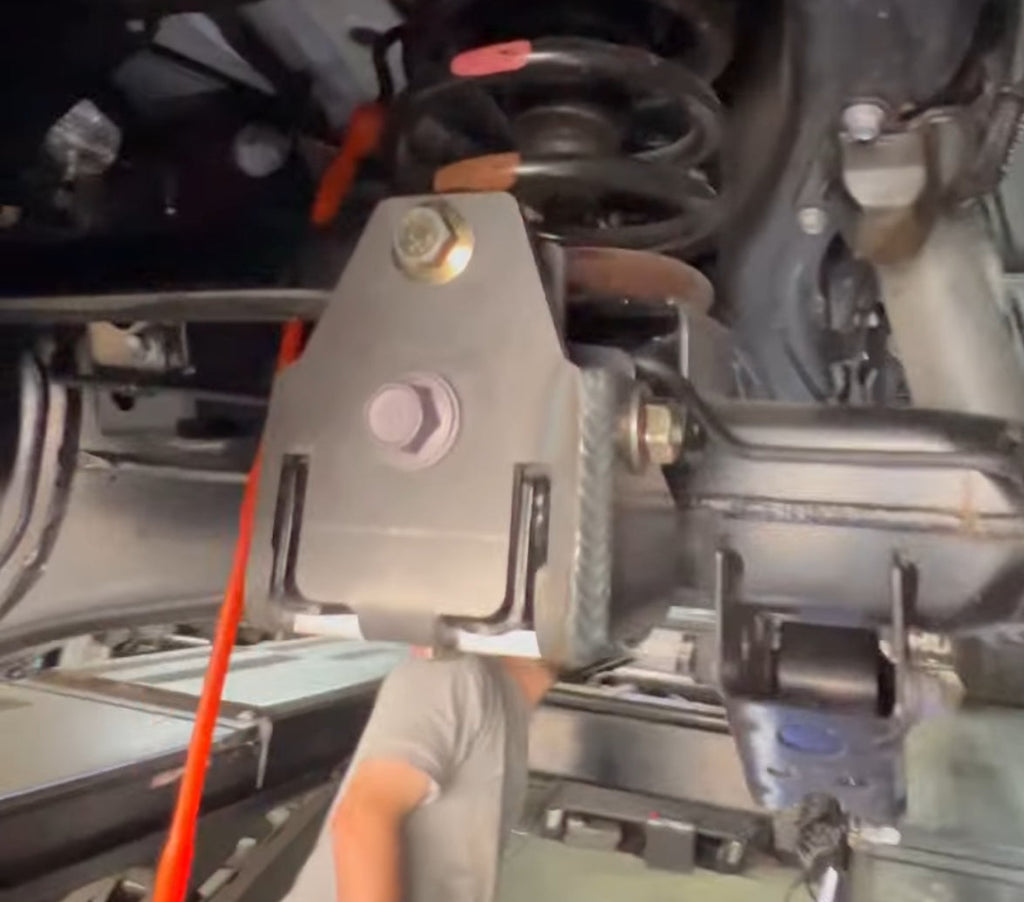

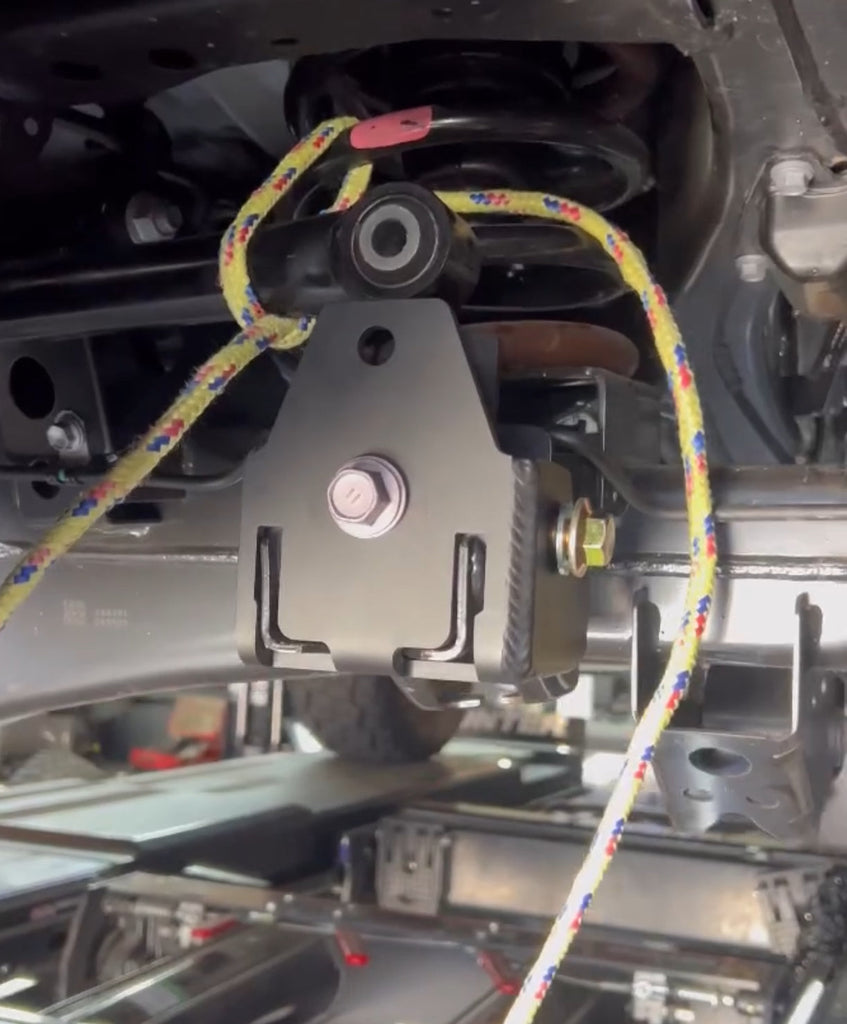

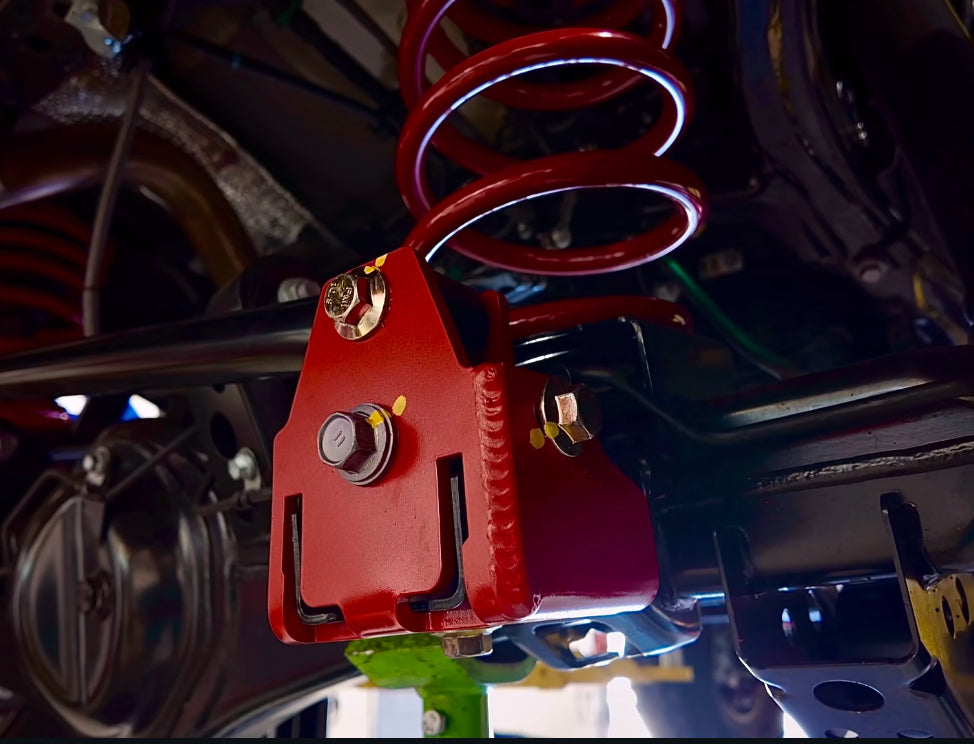

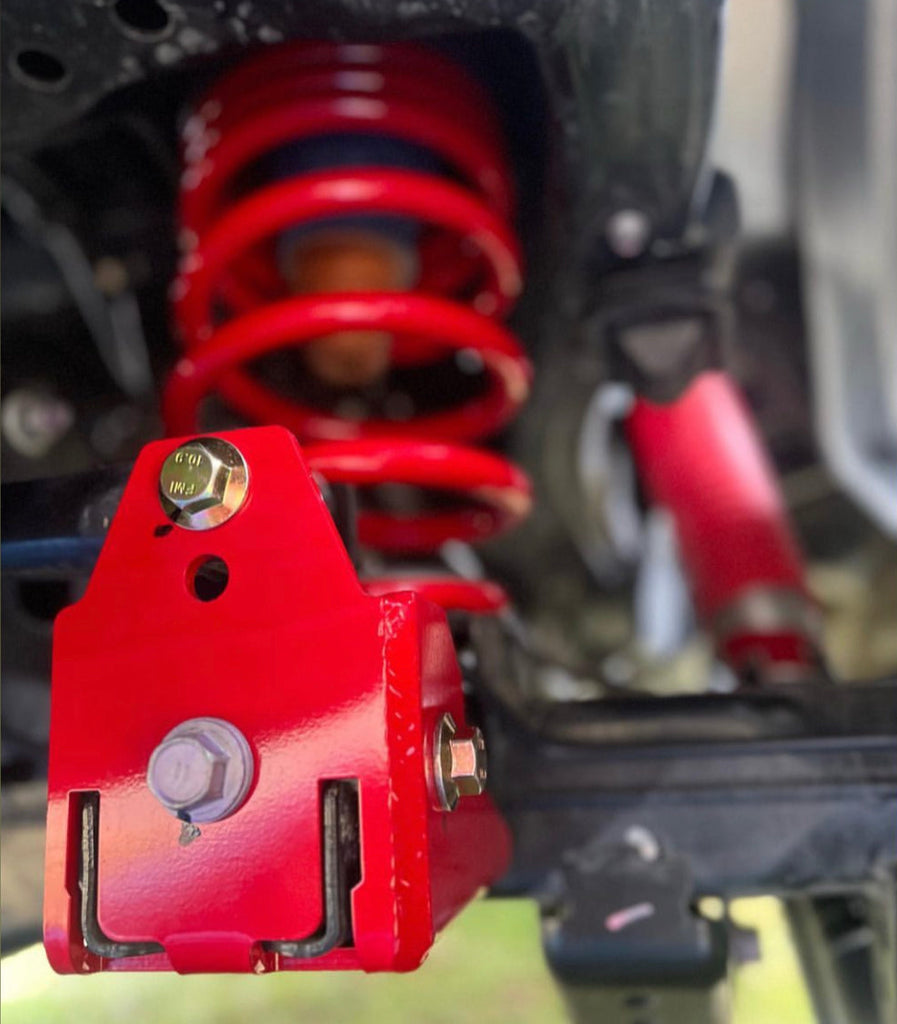

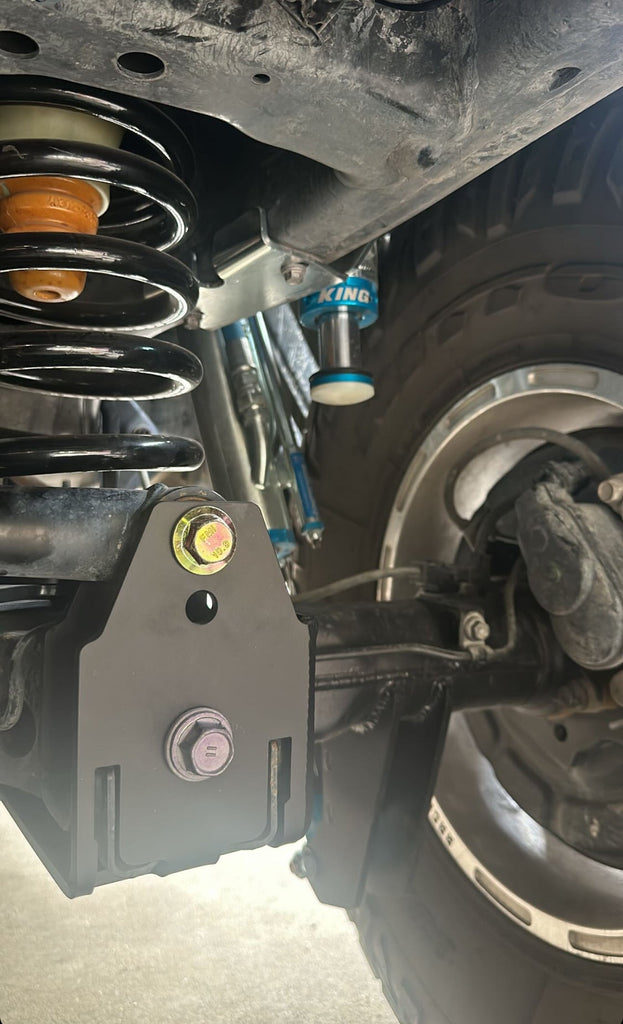

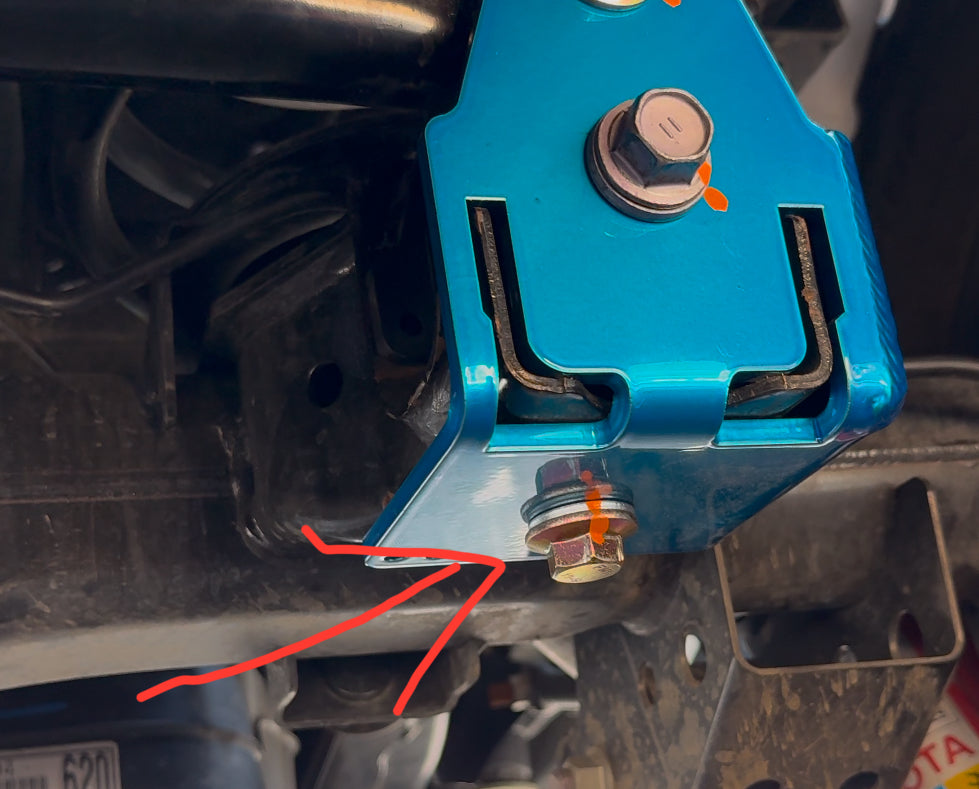

Bolt-on design — no welding, no guesswork.- All brackets have the potential to contact frame under suspension cycle this can be addressed with longer bump stops or bump stop drop . Or get the shorty !
Why It Matters
- When you lift your rig, the track bar angle gets steep. That forces the axle to swing left/right instead of moving up/down — making the rear feel unstable.
- The B.O.T.C.K. raises the pivot point to flatten that bar and bring your handling back to normal. Simple fix, huge difference.
Shorty vs. Regular – Pick the Right One
How to Pick the Correct B.O.T.C.K. Version
Park on level ground.
Measure from the ground to the center of the frame-side track-bar bolt.
Measure from the ground to the center of the axle-side track-bar bolt.
Subtract the two measurements to find your bolt-height difference:
1.5"–2.99" → Shorty Version (or use the bottom hole on the Standard bracket)
3" or higher → Standard Version (use the top hole)
Planning to lift higher later? Go with the Standard Version — it gives you extra mounting options as your suspension height changes.
Updates You Need to Know
No more flange nuts – now standard hex nuts.
Washer for side bolt no longer needed.
Real Talk
Stop buying parts you don’t need — understand what it does before hitting checkout.
This kit isn’t just stronger than weld-on options — it spreads load evenly across the OEM mount instead of depending on the welds.
Designed for rigs that actually see dirt, not just mall crawlers.
What’s Included

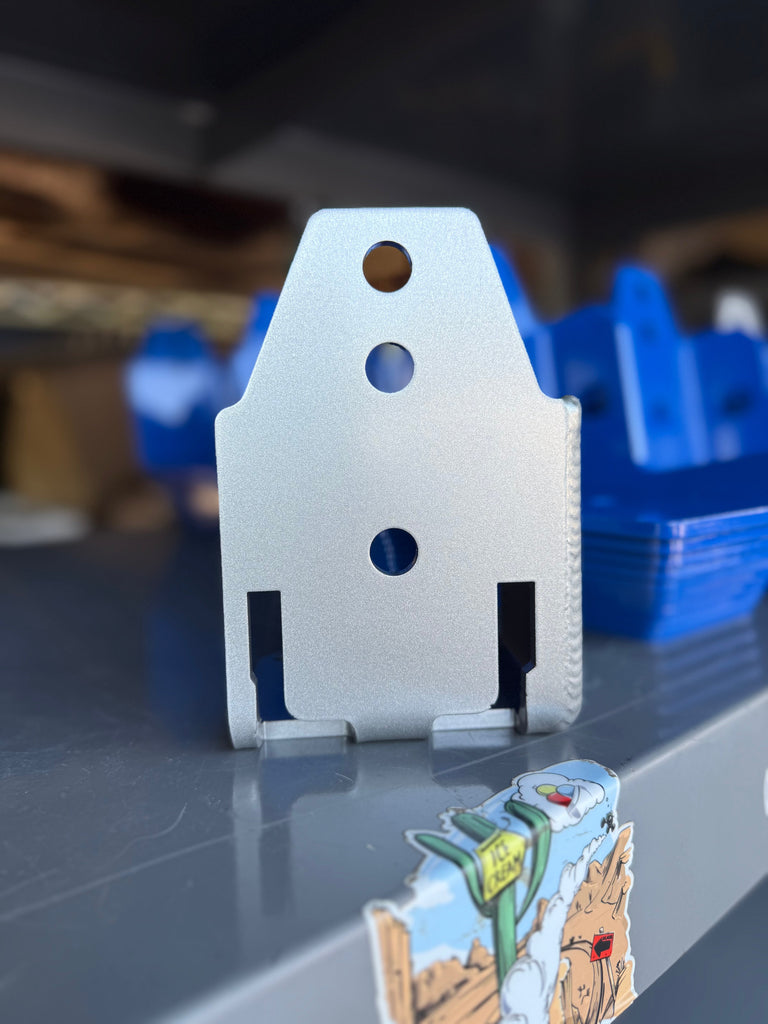

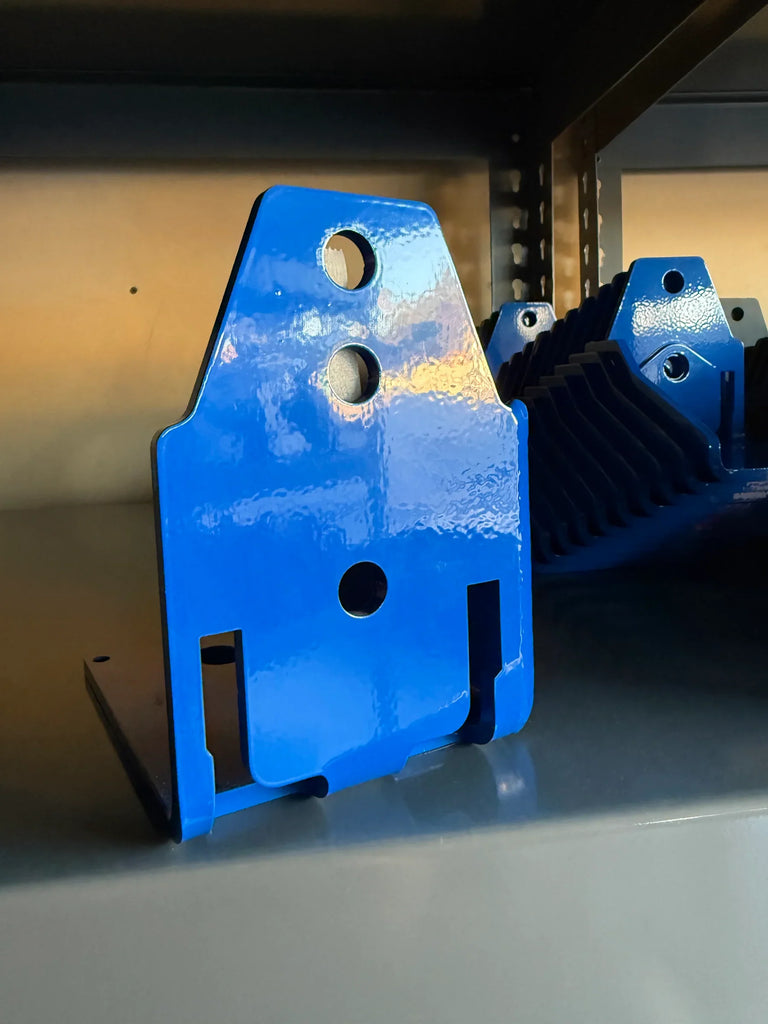

Front bracket
Back bracket
Flag nut
(1x) M14 x 1.5 x 75mm flange head bolt
- (1x) M14 x 1.5 x 80mm flange head bolt
(1x) M14 x 1.5 x 35mm flange head bolt
(1x) M14 x 1.5 x 30mm flange head bolt
(1x) M14 hex nut
All hardware is zinc coated
Fulfillment Time: Please allow 36–48
UPDATED: (Torque bolts to 105 ft lbs oem bolt location 125lbs on the rest . Use blue loctite or very little red )
