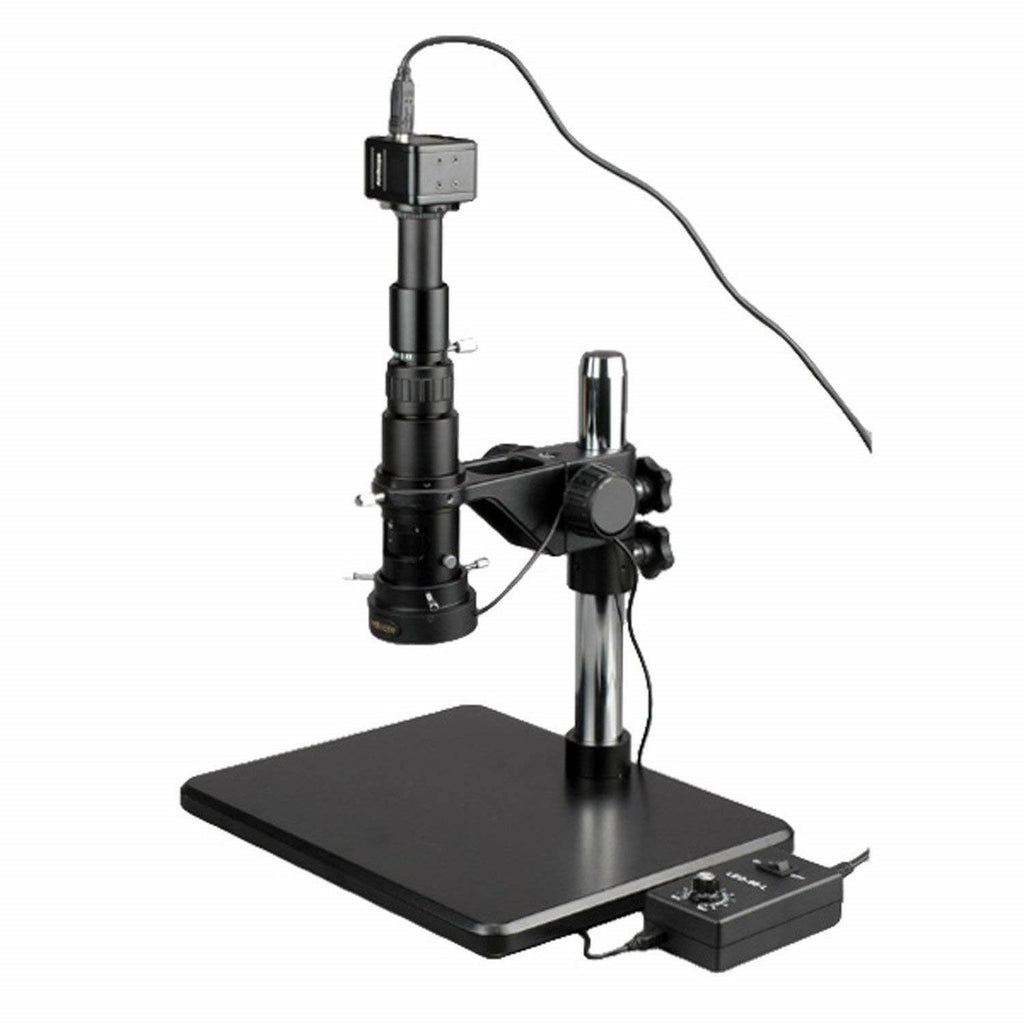

The AmScope H800-5M digital monocular inspection microscope has a 0.4x C-mount camera adapter, a 0.7x-5.0x zoom objective, and an 11x-80x zoom range. The 5MP camera has a CMOS color sensor, a reduction lens, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The microscope has a 12.9 x 17.1mm maximum field of view and a 1.8 x 2.4mm minimum field of view. The working distance is 4-1/8 (105mm). Ambient lighting illuminates the specimen, eliminating the need for power or batteries. The microscope stand has an 11 pillar and a 13 x 10 table (W x D, where W is width, the horizontal distance from left to right; D is depth, the vertical distance from front to back). A digital handheld stand microscope, sometimes called a shop microscope, is used in field, lab, and quality control applications, and in home and educational settings, and where image capture, detailed records, or documentation is required.The 5MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector. The camera has 40x magnification and a 0.5x reduction lens that ensures that the display has a similar field of view as the microscope eyepiece. The camera can be mounted in a C-Mount or any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. Camera drivers are compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. The software includes Windows APIs for native C/C++, C#, DirectShow, Twain, and LabVIEW that enable custom application development. The camera has a USB 2.0 data port (cable included). Microscope SpecificationsZoom objective0.7x-5.0xTotal optical magnification11x-80xCamera mount0.4x C-MountField of view12.9 x 17.1mm (maximum); 1.8 x 2.4mm (minimum)Working distance4-1/8 (105mm)Pillar height11Table dimensions13 x 10 inches (W x D)Power input110V-240V, auto-detectingW is width, the horizontal distance from left to right; D is depth, the vertical distance from front to back. Camera SpecificationsResolution5MP (2592 x 1944 effective pixels)Image typeStill image and video display and captureCamera typeBrightfieldCamera sensor1/2.5 Aptina MT9P001 CMOS (color)Magnification40xReduction lens0.5xMounting size23mm or C-MountFrame rate60fps at 640x480; 18fps at 1280x960; 5fps at 2592x1944Computer connectionUSB 2.0 (backward compatible on PCs only)File formatsJPG, TIF, GIF, PSD, WMF, BMPSoftware packageImage capture and editing for Windows XP, Vista, 7, and 8; Mac OS X; and LinuxCamera driver compatibilityWindows XP, Vista, 7, and 8; Mac OS X; and LinuxMicroscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA. Whats in the Box? Monocular zoom microscope with 0.7-5.0x objective Pillar stand Focusing rack 5MP digital camera (MU500) 0.5x reduction lens USB 2.0 cable Software CD Dust cover
