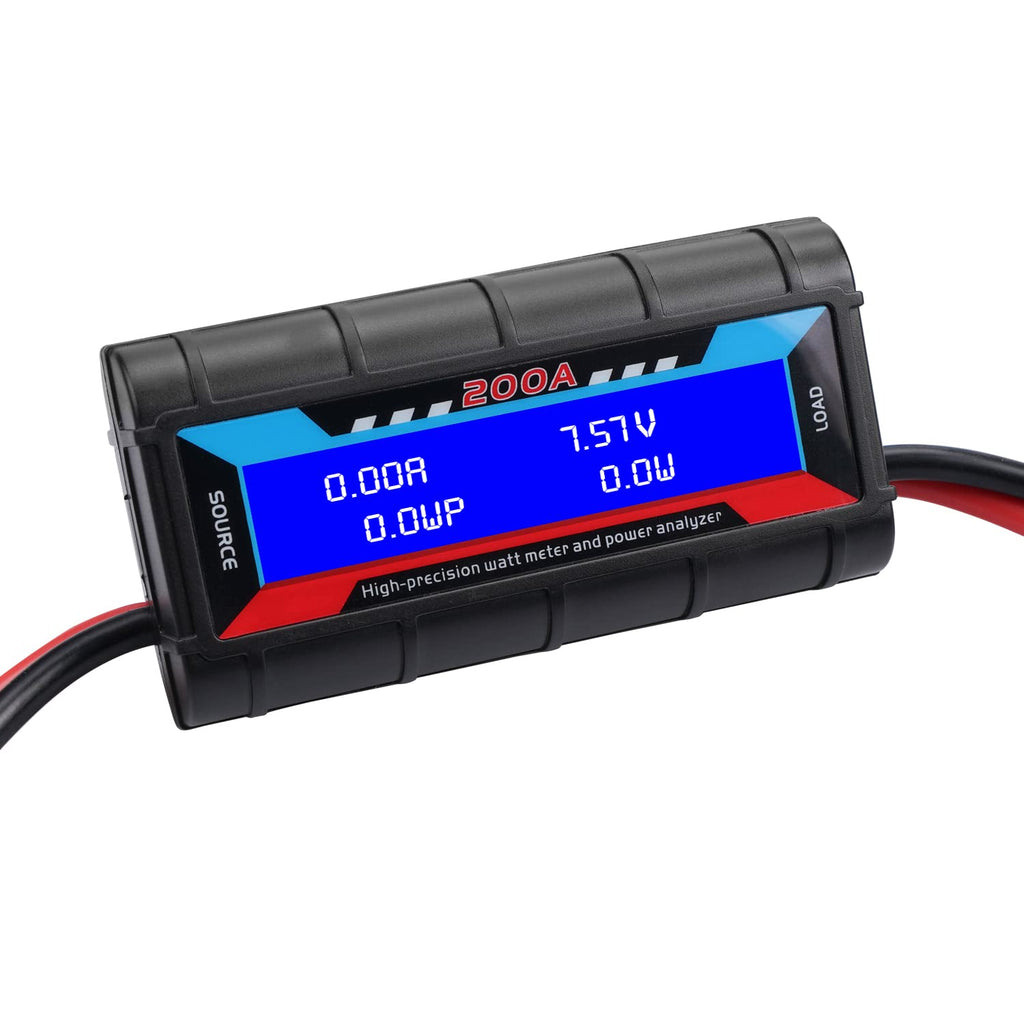

This device only requires a tiny 7mA draw to operate, there will be no significant reduction in your power production during usage. Conection: Connect SOURCE Red wire to positive(+) and Black to Negative of battery or any DC electricity source. Similarly,LOAD wires should be connected to any DC electricity based load. Once there is power flowing through, the device will initialise and show you a full range of ratings including: Current (Amps/A) at the present moment Voltage (Volts/V) at the present moment Power (Watts/W) at the present moment Total Amps (Amp hours/Ah) since device initialised Total Power (Watt hours/Wh) since device initialised Highest Voltage Maximum (Vm) since device initialised Highest Power Peak (Watt Peak/Wp) since device initialised Highest Current Peak (Amp Peak/Ap) since device initialisedSpecification: Operates from 8V to 60V or 0V to 60V with optional auxiliary battery. Measures 0-200A, resolution 0.01A; Measures 0-60V, resolution 0.01V; Measures 0-6554W, resolution 0.1W; Measures 0-65Ah, resolution 0.001Ah; Measures 0-6554Wh, resolution 0.01Wh; Cable:12AWG Display:16x2 backlit LCD display Color: Black Size: 85x42x25mm Net Weight: 82g Package List: 1 x 200A Watt Meter Power Analyser 1 x Manual
